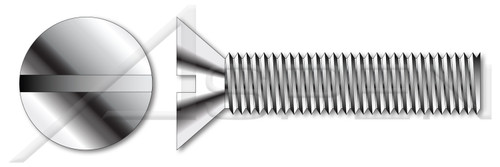

M6-1.0 X 140mm DIN 963 / ISO 2009, Metric, Machine Screws, Flat Slot Drive, Full Thread, A4 Stainless Steel

PART NUMBER:
ME196-610X140-000200
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M6
  • Thread Pitch: 1.0
  • Diameter (Dimension): 6mm
  • Length (Nominal): 140mm
  • Thread Length (Nominal): 137mm
  • Head Diameter: 11mm
  • Head Diameter (Minimum): 10.57mm
  • Head Diameter (Maximum): 11mm
  • Head Height, Overall: 3mm
  • Slot Depth (Minimum): 1.2mm
  • Slot Depth (Maximum): 1.6mm
  • Slot Width (Nominal): 1.6mm
  • Slot Width (Minimum): 1.66mm
  • Slot Width (Maximum): 1.91mm
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Flat Countersunk Head
  • Head Style Detail: 90 Degree Countersink
  • Drive Style: Slotted Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 963 / ISO 2009
Product UPC Code:
698435862203
Slot Width (Nominal):
1.6mm
Thread Pitch:
1.0
Head Style Detail:
90 Degree Countersink
Thread Length (Nominal):
137mm
Slot Depth (Minimum):
1.2mm
Length (Nominal):
140mm
Head Diameter:
11mm
Thread Direction:
Right-Hand Thread
Origin:
Origin Undefined
Coating:
Uncoated
Head Diameter (Maximum):
11mm
System of Measurement:
Metric
Head Diameter (Minimum):
10.57mm
Diameter (Nominal):
M6
Material Grade:
A4 Stainless Steel
Drive Style:
Slotted Drive
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME196-610X140.zip
Slot Width (Maximum):
1.91mm
Head Style:
Flat Countersunk Head
Slot Depth (Maximum):
1.6mm
Order:
Machine Thread Fasteners
Standards and Specifications:
DIN 963 / ISO 2009
Head Height, Overall:
3mm
Category:
Machine Screws
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product87/ME196-610X140.PDF
Shop by System of Measurement:
Metric
POS:
ME196-610X140-000200
Product Class:
Externally Threaded Fasteners
Material:
Stainless Steel
Thread Length:
Full Thread
Slot Width (Minimum):
1.66mm
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME196-610X140
Brand:
Aspen Fasteners
Diameter (Dimension):
6mm
Shop by Material:
Stainless Steel
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
    • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M6
    • Thread Pitch: 1.0
    • Diameter (Dimension): 6mm
    • Length (Nominal): 140mm
    • Thread Length (Nominal): 137mm
    • Head Diameter: 11mm
    • Head Diameter (Minimum): 10.57mm
    • Head Diameter (Maximum): 11mm
    • Head Height, Overall: 3mm
    • Slot Depth (Minimum): 1.2mm
    • Slot Depth (Maximum): 1.6mm
    • Slot Width (Nominal): 1.6mm
    • Slot Width (Minimum): 1.66mm
    • Slot Width (Maximum): 1.91mm
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Flat Countersunk Head
    • Head Style Detail: 90 Degree Countersink
    • Drive Style: Slotted Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A4 Stainless Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 963 / ISO 2009
    Product UPC Code:
    698435862203
  • 3D Product View
