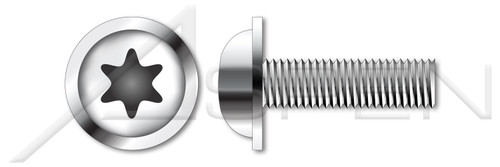

M6-1.0 X 14mm ISO 7380-2, Metric, Flanged Button Head Cap Screws, 6Lobe Torx(r) Drive, Full Thread, A2 Stainless Steel

PART NUMBER:
ME483-610X14-001000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • Flange acts like a built-in washer offering a larger bearing surface for load distribution.
  • A 6-lobe recess is also known as a hexalobular internal drive.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M6
  • Thread Pitch: 1.0
  • Diameter (Dimension): 6mm
  • Diameter (Minimum): 5.82mm
  • Diameter (Maximum): 6mm
  • Length (Nominal): 14mm
  • Thread Length: 14mm
  • Recess Size: T30
  • Head Diameter: 10mm
  • Head Diameter (Minimum): 9.6mm
  • Head Diameter (Maximum): 10mm
  • Head Height, Overall: 3.3mm
  • Head Height, Overall (Minimum): 3mm
  • Head Height, Overall (Maximum): 3.3mm
  • Flange Diameter: 13.6mm
  • Flange Diameter (Minimum): 12.9mm
  • Flange Diameter (Maximum): 13.6mm
  • Flange Thickness: 1.2mm
  • Flange Thickness (Minimum): 1mm
  • Flange Thickness (Maximum): 1.2mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Button Head with Flange
  • Drive Style: 6Lobe Drive
  • Drive Detail: Torx® Generic Alternative
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: ISO 7380-2
Product UPC Code:
692559663951
Diameter (Nominal):
M6
Standards and Specifications:
ISO 7380-2
Coating:
Uncoated
Material Grade:
A2 Stainless Steel
Flange Diameter (Minimum):
12.9mm
Flange Diameter:
13.6mm
Head Height, Overall (Maximum):
3.3mm
Head Height, Overall (Minimum):
3mm
Head Height, Overall:
3.3mm
Head Diameter (Maximum):
10mm
Head Diameter (Minimum):
9.6mm
Head Diameter:
10mm
Recess Size:
T30
Thread Length:
14mm
Length (Nominal):
14mm
Thread Pitch:
1.0
Diameter (Maximum):
6mm
Head Style:
Button Head with Flange
Drive Style:
6Lobe Drive
Drive Detail:
Torx(r) Generic Alternative
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
Material:
Stainless Steel
Brand:
Aspen Fasteners(r)
Flange Thickness (Maximum):
1.2mm
Flange Thickness (Minimum):
1mm
Flange Thickness:
1.2mm
Flange Diameter (Maximum):
13.6mm
Diameter (Minimum):
5.82mm
Diameter (Dimension):
6mm
System of Measurement:
Metric
Category:
Socket Head Cap Screws
Order:
Machine Thread Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • Flange acts like a built-in washer offering a larger bearing surface for load distribution.
    • A 6-lobe recess is also known as a hexalobular internal drive.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Diameter (Nominal): M6
    • Thread Pitch: 1.0
    • Diameter (Dimension): 6mm
    • Diameter (Minimum): 5.82mm
    • Diameter (Maximum): 6mm
    • Length (Nominal): 14mm
    • Thread Length: 14mm
    • Recess Size: T30
    • Head Diameter: 10mm
    • Head Diameter (Minimum): 9.6mm
    • Head Diameter (Maximum): 10mm
    • Head Height, Overall: 3.3mm
    • Head Height, Overall (Minimum): 3mm
    • Head Height, Overall (Maximum): 3.3mm
    • Flange Diameter: 13.6mm
    • Flange Diameter (Minimum): 12.9mm
    • Flange Diameter (Maximum): 13.6mm
    • Flange Thickness: 1.2mm
    • Flange Thickness (Minimum): 1mm
    • Flange Thickness (Maximum): 1.2mm
    • Product Class: Externally Threaded Fasteners
    • Order: Machine Thread Fasteners
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Button Head with Flange
    • Drive Style: 6Lobe Drive
    • Drive Detail: Torx® Generic Alternative
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: ISO 7380-2
    Product UPC Code:
    692559663951

Contact us for availability information on part number ME483-610X14-001000. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
