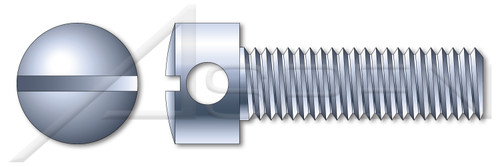

M6-1.0 X 16mm DIN 404, Metric, Capstan Screws, Slotted Drive, Steel, Zinc Plated

PART NUMBER:
ME682-610X16-000100
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Designed to be turned from the side of the head by using a lever inserted into the hole in the head.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M6
  • Thread Pitch: 1.0
  • Diameter (Dimension): 6mm
  • Diameter (Minimum): 5.82mm
  • Diameter (Maximum): 6mm
  • Length (Nominal): 16mm
  • Thread Length (Nominal): 16mm
  • Head Diameter: 10mm
  • Head Diameter (Minimum): 9.85mm
  • Head Diameter (Maximum): 10mm
  • Head Height, Overall: 8mm
  • Head Height, Overall (Minimum): 7.55mm
  • Head Height, Overall (Maximum): 8.45mm
  • Head Dome Height: 0.9mm
  • Slot Depth (Minimum): 2.2mm
  • Slot Depth (Maximum): 2.6mm
  • Slot Width (Nominal): 1.6mm
  • Slot Width (Minimum): 1.66mm
  • Slot Width (Maximum): 1.91mm
  • Hole Diameter (Nominal): 3mm
  • Hole Diameter (Minimum): 3mm
  • Hole Diameter (Maximum): 3.14mm
PRODUCT ATTRIBUTES
  • Category: Capstan Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Cylindrical Head
  • Head Style Detail: Drilled Head
  • Drive Style: Slotted Drive
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 5.8 Steel
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 404
