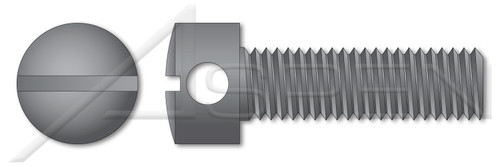

M6-1.0 X 16mm DIN 404, Metric, Capstan Screws, Slotted Drive, Steel

M6-1.0 X 16mm DIN 404, Metric, Capstan Screws, Slotted Drive, Steel

PART NUMBER:
ME681-610X16-000100
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Designed to be turned from the side of the head by using a lever inserted into the hole in the head.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M6
  • Thread Pitch: 1.0
  • Diameter (Dimension): 6mm
  • Diameter (Minimum): 5.82mm
  • Diameter (Maximum): 6mm
  • Length (Nominal): 16mm
  • Thread Length (Nominal): 16mm
  • Head Diameter: 10mm
  • Head Diameter (Minimum): 9.85mm
  • Head Diameter (Maximum): 10mm
  • Head Height, Overall: 8mm
  • Head Height, Overall (Minimum): 7.55mm
  • Head Height, Overall (Maximum): 8.45mm
  • Head Dome Height: 0.9mm
  • Slot Depth (Minimum): 2.2mm
  • Slot Depth (Maximum): 2.6mm
  • Slot Width (Nominal): 1.6mm
  • Slot Width (Minimum): 1.66mm
  • Slot Width (Maximum): 1.91mm
  • Hole Diameter (Nominal): 3mm
  • Hole Diameter (Minimum): 3mm
  • Hole Diameter (Maximum): 3.14mm
PRODUCT ATTRIBUTES
  • Category: Capstan Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Cylindrical Head
  • Head Style Detail: Drilled Head
  • Drive Style: Slotted Drive
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 5.8 Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 404
Product UPC Code:
698435913080
Thread Direction:
Right-Hand Thread
Thread Pitch:
1.0
Diameter (Nominal):
M6
Head Diameter:
10mm
Slot Depth (Maximum):
2.6mm
Origin:
Origin Undefined
Diameter (Minimum):
5.82mm
Material Grade:
Class 5.8 Steel
Coating:
Uncoated
Drive Style:
Slotted Drive
Head Style Detail:
Drilled Head
POS:
ME681-610X16-000100
Head Height, Overall:
8mm
Thread Length (Nominal):
16mm
Slot Depth (Minimum):
2.2mm
Head Diameter (Maximum):
10mm
Slot Width (Maximum):
1.91mm
Length (Nominal):
16mm
Hole Diameter:
3mm
Head Height, Overall (Maximum):
8.45mm
Head Style:
Cylindrical Head
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME681-610X16.zip
Standards and Specifications:
DIN 404
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product89/ME681-610X16.PDF
Material:
Steel
Product Class:
Externally Threaded Fasteners
Diameter (Maximum):
6mm
Category:
Capstan Screws
Brand:
Aspen Fasteners
Shop by Material:
Steel
Hole Diameter (Maximum):
3.14mm
Head Diameter (Minimum):
9.85mm
Slot Width (Nominal):
1.6mm
Shop by System of Measurement:
Metric
Order:
Machine Thread Fasteners
Head Height, Overall (Minimum):
7.55mm
Diameter (Dimension):
6mm
System of Measurement:
Metric
Hole Diameter (Minimum):
3mm
Slot Width (Minimum):
1.66mm
Head Dome Height:
0.9mm
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME681-610X16
