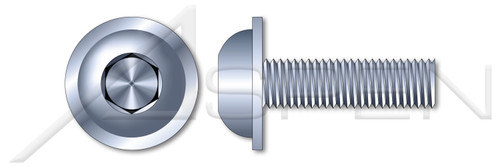

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- Flange acts like a built-in washer offering a larger bearing surface for load distribution.
- An internal hex socket drive is also known as an Allen drive.
- Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
- Diameter (Nominal): M6
- Thread Pitch: 1.0
- Diameter (Dimension): 6mm
- Diameter (Minimum): 5.82mm
- Diameter (Maximum): 6mm
- Length (Nominal): 16mm
- Thread Length: 16mm
- Recess Size: 4mm
- Head Diameter: 10mm
- Head Diameter (Minimum): 9.6mm
- Head Diameter (Maximum): 10mm
- Head Height, Overall: 3.3mm
- Head Height, Overall (Minimum): 3mm
- Head Height, Overall (Maximum): 3.3mm
- Flange Diameter: 13.6mm
- Flange Diameter (Minimum): 12.9mm
- Flange Diameter (Maximum): 13.6mm
- Flange Thickness: 1.2mm
- Flange Thickness (Minimum): 1mm
- Flange Thickness (Maximum): 1.2mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Button Head with Flange
- Drive Style: Hex Socket Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 10.9 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: ISO 7380-2
Product UPC Code:
698435244511
- Flange Thickness (Maximum):
- 1.2mm
- Thread Length:
- 16mm
- Drive Style:
- Hex Socket Drive
- Diameter (Dimension):
- 6mm
- Shop by Application:
- Socket Products
- Head Height, Overall (Maximum):
- 3.3mm
- Diameter (Minimum):
- 5.82mm
- Head Style:
- Button Head with Flange
- Material Grade:
- Class 10.9 Steel
- Shop by Material:
- Steel
- Length (Nominal):
- 16mm
- Head Height, Overall:
- 3.3mm
- Diameter (Maximum):
- 6mm
- Thread Pitch:
- 1.0
- Coating:
- Zinc Plated
- Flange Diameter:
- 13.6mm
- Shop by System of Measurement:
- Metric
- Diameter (Nominal):
- M6
- Flange Diameter (Minimum):
- 12.9mm
- Thread Length:
- Full Thread
- Coating Color:
- Clear
- Category:
- Socket Head Cap Screws
- Flange Thickness:
- 1.2mm
- Material:
- Steel
- Recess Size:
- 4mm
- System of Measurement:
- Metric
- Standards and Specifications:
- ISO 7380-2
- Head Diameter:
- 10mm
- Order:
- Machine Thread Fasteners
- Thread Direction:
- Right-Hand Thread
- Head Diameter (Minimum):
- 9.6mm
- Product Class:
- Externally Threaded Fasteners
- Brand:
- Aspen Fasteners(r)
- Head Height, Overall (Minimum):
- 3mm
- Flange Thickness (Minimum):
- 1mm
- Head Diameter (Maximum):
- 10mm
- Flange Diameter (Maximum):
- 13.6mm
