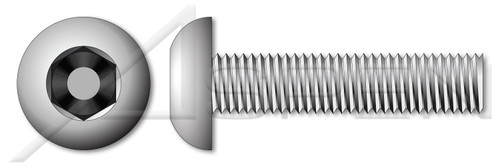

M6-1.0 X 22mm Machine Screws, Metric, Button Head Tamper-Resistant Hex Socket Pin Drive, Stainless Steel, Includes Driver Bit

PART NUMBER:
TR023-610X22532
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • Button head screws have a wider bearing surface and maintain a low head profile.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M6
  • Thread Pitch: 1.0
  • Diameter (Dimension): 6mm
  • Length (Nominal): 22mm
  • Drive Size: 5/32"
  • Head Diameter: 10.5mm
  • Head Height, Overall: 3.3mm
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Button Head
  • Drive Style: Tamper-Resistant Hex Socket Pin Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: AISI 302 Stainless Steel
  • Coating: Uncoated
  • Origin: Made in U.S.A.
  • Standards and Specifications: ASME B18.3.4M
Shop by System of Measurement:
Metric
Shop by Material:
Stainless Steel
Shop by Application:
Tamper-Resistant Security Fasteners
Shop by Application:
Socket Products
Head Height, Overall:
3.3mm
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Machine Screws
System of Measurement:
Metric
Brand:
Aspen Fasteners
Head Style:
Button Head
Drive Style:
Tamper-Resistant Hex Socket Pin Drive
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
Material:
Stainless Steel
Material Grade:
AISI 302 Stainless Steel
Coating:
Uncoated
Origin:
Made in U.S.A.
Standards and Specifications:
ASME B18.3.4M
Diameter (Nominal):
M6
Diameter (Dimension):
6mm
Thread Pitch:
1.0
Length (Nominal):
22mm
Recess Size:
5/32"
Head Diameter:
10.5mm
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • Button head screws have a wider bearing surface and maintain a low head profile.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M6
    • Thread Pitch: 1.0
    • Diameter (Dimension): 6mm
    • Length (Nominal): 22mm
    • Drive Size: 5/32"
    • Head Diameter: 10.5mm
    • Head Height, Overall: 3.3mm
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Button Head
    • Drive Style: Tamper-Resistant Hex Socket Pin Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: AISI 302 Stainless Steel
    • Coating: Uncoated
    • Origin: Made in U.S.A.
    • Standards and Specifications: ASME B18.3.4M
