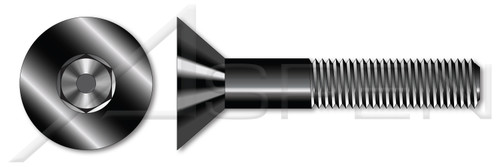

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- An internal hex socket drive is also known as an Allen drive.
- Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M6
- Thread Pitch: 1.0
- Diameter (Dimension): 6mm
- Diameter (Minimum): 5.82mm
- Diameter (Maximum): 6mm
- Length (Nominal): 25mm
- Thread Length (Nominal): 21.7mm
- Drive Recess Size: 4mm
- Drive Recess Width: 4mm
- Drive Recess Width (Minimum): 4.02mm
- Drive Recess Width (Maximum): 4.12mm
- Drive Recess Depth: 2.5mm
- Drive Recess Depth (Minimum): 2.25mm
- Drive Recess Depth (Maximum): 2.5mm
- Head Diameter: 12mm
- Head Diameter (Minimum): 11.57mm
- Head Diameter (Maximum): 12mm
- Head Height, Overall: 3.3mm
PRODUCT ATTRIBUTES- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Unbrako®
- Head Style: Flat Countersunk Head
- Head Style Detail: 90 Degree Countersink
- Drive Style: Hex Socket Drive
- Thread Length: Part Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Alloy Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 7991 / ISO 10642
Product UPC Code:
698435810563
- Material:
- Steel
- Coating:
- Uncoated
- Standards and Specifications:
- DIN 7991 / ISO 10642
- Diameter (Nominal):
- M6
- Diameter (Dimension):
- 6mm
- Diameter (Minimum):
- 5.82mm
- Diameter (Maximum):
- 6mm
- Thread Pitch:
- 1.0
- Length (Nominal):
- 25mm
- Thread Length:
- 18mm
- Head Diameter:
- 12mm
- Head Diameter (Minimum):
- 11.57mm
- Head Diameter (Maximum):
- 12mm
- Head Height, Overall:
- 3.3mm
- Shop by System of Measurement:
- Metric
- Shop by Material:
- Steel
- Shop by Application:
- Socket Products
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Category:
- Socket Head Cap Screws
- System of Measurement:
- Metric
- Brand:
- Unbrako(r)
- Head Style:
- Flat Countersunk Head
- Head Style Detail:
- 90 Degree Countersink
- Drive Style:
- Hex Socket Drive
- Thread Direction:
- Right-Hand Thread
- Material Grade:
- Alloy Steel
- POS:
- UB008-610X25-001000
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/UB008-610X25
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/UB008-610X25.zip
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product70/UB008-610X25.PDF
- Drive Recess Width (Maximum):
- 4.12mm
- Drive Recess Depth (Minimum):
- 2.25mm
- Origin:
- Origin Undefined
- Drive Recess Size:
- 4mm
- Thread Length (Nominal):
- 21.7mm
- Drive Recess Width (Minimum):
- 4.02mm
- Drive Recess Width:
- 4mm
- Drive Recess Depth:
- 2.5mm
- Drive Recess Depth (Maximum):
- 2.5mm
