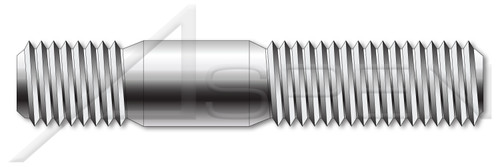

M6-1.0 X 60mm DIN 939, Metric, Studs, Double-Ended, Screw-in End 1.25 X Diameter, A4 Stainless Steel

PART NUMBER:
ME549-610X60-000200
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
  • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
  • Double-ended studs are used to join parts when a bolt or screw head is not an option.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M6
  • Thread Pitch: 1.0
  • Diameter (Dimension): 6mm
  • Length (Nominal): 60mm
  • Length Overall: 67.5mm
  • Screw-End Thread Length: 7.5mm
  • Thread Length (Nominal): 18mm
  • Body Length (Nominal): 42mm
PRODUCT ATTRIBUTES
  • Category: Studs, Double-Ended
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Form and Design: Screw-in End 1.25 X Diameter
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 939
Coating:
Uncoated
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME549-610X60.zip
Body Length (Nominal):
42mm
Material Grade:
A4 Stainless Steel
Form and Design:
Screw-in End 1.25 X Diameter
Thread Pitch:
1.0
Shop by System of Measurement:
Metric
Product Class:
Externally Threaded Fasteners
Material:
Stainless Steel
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME549-610X60
Diameter (Dimension):
6mm
Shop by Material:
Stainless Steel
Length Overall:
67.5mm
Order:
Machine Thread Fasteners
Diameter (Nominal):
M6
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product95/ME549-610X60.PDF
Screw-End Thread Length:
7.5mm
Length (Nominal):
60mm
System of Measurement:
Metric
Category:
Studs, Double-Ended
Thread Length (Nominal):
18mm
Brand:
Aspen Fasteners
Standards and Specifications:
DIN 939
POS:
ME549-610X60-000200
Thread Direction:
Right-Hand Thread
  • Description
    • MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
    • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
    • Double-ended studs are used to join parts when a bolt or screw head is not an option.
    • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M6
    • Thread Pitch: 1.0
    • Diameter (Dimension): 6mm
    • Length (Nominal): 60mm
    • Length Overall: 67.5mm
    • Screw-End Thread Length: 7.5mm
    • Thread Length (Nominal): 18mm
    • Body Length (Nominal): 42mm
    PRODUCT ATTRIBUTES
    • Category: Studs, Double-Ended
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Form and Design: Screw-in End 1.25 X Diameter
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A4 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 939
  • 3D Product View

Contact us for availability information on part number ME549-610X60-000200. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
