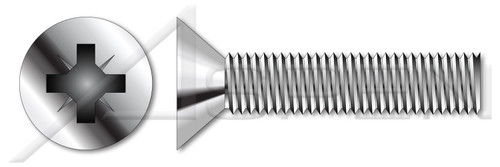

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M6
- Thread Pitch: 1.0
- Diameter (Dimension): 6mm
- Length (Nominal): 75mm
- Thread Length (Nominal): 72mm
- Drive Recess Size: #3
- Drive Recess Width: 6.1mm
- Drive Recess Depth (Minimum): 2.46mm
- Drive Recess Depth (Maximum): 2.92mm
- Head Diameter: 11mm
- Head Diameter (Minimum): 10.57mm
- Head Diameter (Maximum): 11mm
- Head Height, Overall: 3mm
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 90 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Pozidriv Type Z
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 965 / ISO 7046
Product UPC Code:
692559682372
- Head Diameter (Maximum):
- 11mm
- Drive Recess Width:
- 6.1mm
- Diameter (Dimension):
- 6mm
- Thread Length:
- Full Thread
- Shop by System of Measurement:
- Metric
- Brand:
- Aspen Fasteners
- Product Class:
- Externally Threaded Fasteners
- Drive Detail:
- Pozidriv Type Z
- Thread Length (Nominal):
- 72mm
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME519-610X75.zip
- Head Diameter (Minimum):
- 10.57mm
- System of Measurement:
- Metric
- Head Height, Overall:
- 3mm
- Drive Recess Size:
- #3
- Shop by Material:
- Stainless Steel
- POS:
- ME519-610X75-000400
- Origin:
- Origin Undefined
- Material:
- Stainless Steel
- Coating:
- Uncoated
- Length (Nominal):
- 75mm
- Material Grade:
- A2 Stainless Steel
- Head Style Detail:
- 90 Degree Countersink
- Standards and Specifications:
- DIN 965 / ISO 7046
- Head Style:
- Flat Countersunk Head
- Order:
- Machine Thread Fasteners
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME519-610X75
- Category:
- Machine Screws
- Head Diameter:
- 11mm
- Drive Style:
- Cruciform Recess Drive
- Thread Pitch:
- 1.0
- Thread Direction:
- Right-Hand Thread
- Diameter (Nominal):
- M6
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product51/ME519-610X75.PDF
