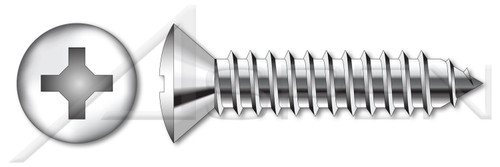

M6.3 X 19mm DIN 7983 / ISO 7051, Metric, Self-Tapping Sheet Metal Screws, Oval Phillips Drive, Full Thread, A4 Stainless Steel

PART NUMBER:
ME464-63X19-000500
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
  • Oval countersunk head screws are also known as raised countersunk head screws.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M6.3
  • Diameter (Dimension): 6.3mm
  • Length (Nominal): 19mm
  • Thread Length: 15.2mm
  • Recess Size: #3
  • Head Diameter: 12.4mm
  • Head Height, Overall: 3.8mm
  • Product Class: Externally Threaded Fasteners
  • Order: Thread Cutting Fasteners
  • Category: Self-Tapping Sheet Metal Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Oval Countersunk Head
  • Head Style Detail: 80 Degree Countersink
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 7983 / ISO 7051
Product UPC Code:
692559652764
Drive Detail:
Phillips Type H
Thread Length:
Full Thread
Material:
Stainless Steel
Recess Size:
#3
Head Style Detail:
80 Degree Countersink
Material Grade:
A4 Stainless Steel
Coating:
Uncoated
Product Class:
Externally Threaded Fasteners
Stainless Steel:
Stainless Steel
Thread Length:
15.2mm
Diameter (Nominal):
M6.3
Standards and Specifications:
DIN 7983 / ISO 7051
Head Diameter:
12.4mm
Head Height, Overall:
3.8mm
Diameter (Dimension):
6.3mm
Brand:
Aspen Fasteners
Drive Style:
Cruciform Recess Drive
Length (Nominal):
19mm
Head Style:
Oval Countersunk Head
Order:
Thread Cutting Fasteners
Category:
Self-Tapping Sheet Metal Screws
System of Measurement:
Metric
Thread Direction:
Right-Hand Thread
  • Description
    • Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
    • Oval countersunk head screws are also known as raised countersunk head screws.
    • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Diameter (Nominal): M6.3
    • Diameter (Dimension): 6.3mm
    • Length (Nominal): 19mm
    • Thread Length: 15.2mm
    • Recess Size: #3
    • Head Diameter: 12.4mm
    • Head Height, Overall: 3.8mm
    • Product Class: Externally Threaded Fasteners
    • Order: Thread Cutting Fasteners
    • Category: Self-Tapping Sheet Metal Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Oval Countersunk Head
    • Head Style Detail: 80 Degree Countersink
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A4 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 7983 / ISO 7051
    Product UPC Code:
    692559652764

Contact us for availability information on part number ME464-63X19-000500. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
