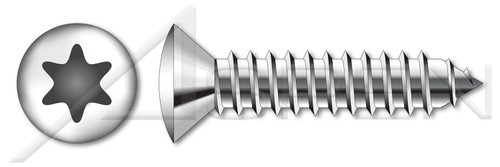

M6.3 X 60mm ISO 14587, Metric, Self-Tapping Sheet Metal Screws, Oval Head 6Lobe Torx(r) Drive, A4 Stainless Steel

$260.26
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PART NUMBER:
ME461-63X60-000200
Buy in Bulk and Save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • ISO 14587 formerly referred to the DIN 7983 specification.
  • Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
  • Oval countersunk head screws are also known as raised countersunk head screws.
  • A 6-lobe recess is also known as a hexalobular internal drive.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M6.3
  • Diameter (Dimension): 6.3mm
  • Length (Nominal): 60mm
  • Thread Length: 56.2mm
  • Recess Size: T3
  • Head Diameter: 12.4mm
  • Head Height, Overall: 3.8mm
  • Product Class: Externally Threaded Fasteners
  • Order: Thread Cutting Fasteners
  • Category: Self-Tapping Sheet Metal Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Oval Countersunk Head
  • Head Style Detail: 80 Degree Countersink
  • Drive Style: 6Lobe Drive
  • Drive Detail: Torx® Generic Alternative
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: ISO 14587
Product UPC Code:
692559574028
Buy in Bulk and Save
Diameter (Nominal):
M6.3
Diameter (Dimension):
6.3mm
Length (Nominal):
60mm
Head Height, Overall:
3.8mm
Standards and Specifications:
ISO 14587
Category:
Self-Tapping Sheet Metal Screws
Head Style:
Oval Countersunk Head
Recess Size:
T3
Thread Length:
56.2mm
Order:
Thread Cutting Fasteners
Product Class:
Externally Threaded Fasteners
Stainless Steel:
Stainless Steel
Material Grade:
A4 Stainless Steel
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Coating:
Uncoated
Brand:
Aspen Fasteners(r)
System of Measurement:
Metric
Drive Detail:
Torx(r) Generic Alternative
Head Diameter:
12.4mm
Drive Style:
6Lobe Drive
Head Style Detail:
80 Degree Countersink

Contact us for availability information on part number ME461-63X60-000200. Please chat with us, call us, or use the form below. Our customer support team will find the best delivery options for you.
