- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M6
- Diameter (Dimension): 6mm
- Inside Diameter (Nominal): 6.6mm
- Inside Diameter (Minimum): 6.6mm
- Inside Diameter (Maximum): 6.96mm
- Outside Diameter (Nominal): 22mm
- Outside Diameter (Minimum): 20.7mm
- Outside Diameter (Maximum): 22mm
- Thickness (Nominal): 2mm
- Thickness (Minimum): 1.7mm
- Thickness (Maximum): 2.3mm

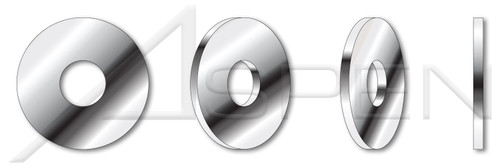

PRODUCT ATTRIBUTES- Category: Standard Flat Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Form and Design: Type "R" Round Hole
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 440 / ISO 7094
Product UPC Code:
692559707594
- Material Grade:
- A2 Stainless Steel
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product83/ME636-6X66X22X2.PDF
- Inside Diameter (Maximum):
- 6.96mm
- Diameter (Nominal):
- M6
- Brand:
- Aspen Fasteners
- Thickness (Minimum):
- 1.7mm
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME636-6X66X22X2
- POS:
- ME636-6X66X22X2-001000
- Shop by System of Measurement:
- Metric
- Coating:
- Uncoated
- Outside Diameter (Minimum):
- 20.7mm
- Order:
- Flat Washers
- Thickness (Nominal):
- 2mm
- Thickness (Maximum):
- 2.3mm
- System of Measurement:
- Metric
- Standards and Specifications:
- DIN 440 / ISO 7094
- Inside Diameter (Minimum):
- 6.6mm
- Diameter (Dimension):
- 6mm
- Form and Design:
- Type "R" Round Hole
- Material:
- Stainless Steel
- Product Class:
- Washers
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME636-6X66X22X2.zip
- Shop by Material:
- Stainless Steel
- Inside Diameter (Nominal):
- 6.6mm
- Outside Diameter (Maximum):
- 22mm
- Outside Diameter (Nominal):
- 22mm
- Category:
- Standard Flat Washers
