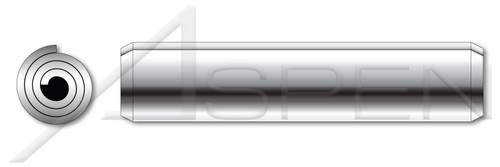

- Spring pins are hollow, cylindrical press fit fasteners with chamfered ends.
- Coiled spring pins are also known as tension pins, rolled spring pins, or spiral pins.
- A spring pin will maintain its position in an assembly by a predetermined spring tension.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M6
- Diameter (Dimension): 6mm
- Diameter (Minimum): 6.25mm
- Diameter (Maximum): 6.5mm
- Length (Nominal): 28mm
- Thickness (Nominal): 0.5mm
- Chamfer Length: 1.5mm
- Chamfer Diameter: 5.85mm
PRODUCT ATTRIBUTES- Category: Coiled Spring Pins
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Material: Stainless Steel
- Material Grade: 301 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ISO 8750
Product UPC Code:
692559517087
- Diameter (Dimension):
- 6mm
- Diameter (Minimum):
- 6.25mm
- Diameter (Maximum):
- 6.5mm
- Length (Nominal):
- 28mm
- Coating:
- Uncoated
- Shop by System of Measurement:
- Metric
- Shop by Material:
- Stainless Steel
- Product Class:
- Pins and Wireforms
- Order:
- Spring Pins
- Category:
- Coiled Spring Pins
- System of Measurement:
- Metric
- Brand:
- Aspen Fasteners
- Material:
- Stainless Steel
- Standards and Specifications:
- ISO 8750
- Chamfer Diameter:
- 5.85mm
- Chamfer Length:
- 1.5mm
- Thickness (Nominal):
- 0.5mm
- Diameter (Nominal):
- M6
- Material Grade:
- 301 Stainless Steel
- POS:
- ME622-6X28-000500
- Origin:
- Origin Undefined
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME622-6X28
