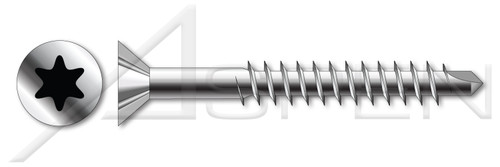

M6 X 50mm Particle Board Screws, Metric, Flat 6Lobe Torx(r) Drive, Nibs Under Head, Self-Drilling Point, Part Thread, A2 Stainless Steel, Art. 9040

PART NUMBER:
ME727-6X50-000400
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Particle board screws are designed for use in dense woods such as particle boards or chipboards.
  • A 6-lobe recess is also known as a hexalobular internal drive.
  • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M6
  • Diameter (Dimension): 6mm
  • Length (Nominal): 50mm
  • Thread Length (Nominal): 30mm
  • Drill Size: 4.9mm
  • Drive Size: T25
  • Head Diameter: 12mm
  • Head Height, Overall: 3.6mm
PRODUCT ATTRIBUTES
  • Category: Particle Board Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Flat Countersunk Head
  • Head Style Detail: Nibs Under Head
  • Drive Style: 6Lobe Drive
  • Drive Detail: Torx® Generic Alternative
  • Thread Length: Part Thread
  • Thread Direction: Right-Hand Thread
  • Point: Self-Drilling Point
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: Art. 9040
Drive Style:
6Lobe Drive
Shop by System of Measurement:
Metric
Shop by Material:
Stainless Steel
Product Class:
Externally Threaded Fasteners
Order:
Thread Cutting Fasteners
Category:
Particle Board Screws
System of Measurement:
Metric
Brand:
Aspen Fasteners
Head Style:
Flat Countersunk Head
Head Style Detail:
Nibs Under Head
Drive Detail:
Torx(r) Generic Alternative
Thread Length:
Part Thread
Thread Direction:
Right-Hand Thread
Point:
Self-Drilling Point
Material:
Stainless Steel
Material Grade:
A2 Stainless Steel
Coating:
Uncoated
Drill Size:
4.9mm
Head Height, Overall:
3.6mm
Head Diameter:
12mm
Recess Size:
T25
Thread Length (Nominal):
30mm
Standards and Specifications:
Art. 9040
Length (Nominal):
50mm
Diameter (Dimension):
6mm
Diameter (Nominal):
M6
  • Description
    • Particle board screws are designed for use in dense woods such as particle boards or chipboards.
    • A 6-lobe recess is also known as a hexalobular internal drive.
    • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M6
    • Diameter (Dimension): 6mm
    • Length (Nominal): 50mm
    • Thread Length (Nominal): 30mm
    • Drill Size: 4.9mm
    • Drive Size: T25
    • Head Diameter: 12mm
    • Head Height, Overall: 3.6mm
    PRODUCT ATTRIBUTES
    • Category: Particle Board Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Flat Countersunk Head
    • Head Style Detail: Nibs Under Head
    • Drive Style: 6Lobe Drive
    • Drive Detail: Torx® Generic Alternative
    • Thread Length: Part Thread
    • Thread Direction: Right-Hand Thread
    • Point: Self-Drilling Point
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: Art. 9040
