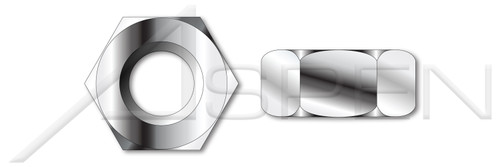

M7-1.0 DIN 934 / ISO 4032, Metric, Hex Finished Nuts, A2-80 Stainless Steel

PART NUMBER:
ME590-710X55X11-000500
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Hex finished nuts are considered the most commonly used hex nuts.
  • DIN 934 hex nuts are the most commonly used metric hex nuts.
  • Also known as regular hex nuts.
  • A2-80 stainless steel provides a minimum tensile strength of 800N/mm-2 (Mpa).
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M7
  • Thread Pitch: 1.0
  • Diameter (Dimension): 7mm
  • Thread Length (Nominal): 5.5mm
  • Across Flats (Basic): 11mm
  • Height (Basic): 5.5mm
PRODUCT ATTRIBUTES
  • Category: Hex Finished Nuts
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Drive Style: External Hex Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2-80 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 934 / ISO 4032
Product UPC Code:
692559699769
Order:
Nuts
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
POS:
ME590-710X55X11-000500
Standards and Specifications:
DIN 934 / ISO 4032
Category:
Hex Finished Nuts
Thread Length (Nominal):
5.5mm
Diameter (Nominal):
M7
Coating:
Uncoated
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME590-710X55X11.zip
Brand:
Aspen Fasteners
Shop by Material:
Stainless Steel
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product38/ME590-710X55X11.PDF
Height (Basic):
5.5mm
Diameter (Dimension):
7mm
Material Grade:
A2-80 Stainless Steel
Product Class:
Internally Threaded Fasteners
System of Measurement:
Metric
Material:
Stainless Steel
Thread Pitch:
1.0
Shop by System of Measurement:
Metric
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME590-710X55X11
Across Flats (Basic):
11mm
Drive Style:
External Hex Drive
  • Description
    • Hex finished nuts are considered the most commonly used hex nuts.
    • DIN 934 hex nuts are the most commonly used metric hex nuts.
    • Also known as regular hex nuts.
    • A2-80 stainless steel provides a minimum tensile strength of 800N/mm-2 (Mpa).
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M7
    • Thread Pitch: 1.0
    • Diameter (Dimension): 7mm
    • Thread Length (Nominal): 5.5mm
    • Across Flats (Basic): 11mm
    • Height (Basic): 5.5mm
    PRODUCT ATTRIBUTES
    • Category: Hex Finished Nuts
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Drive Style: External Hex Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2-80 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 934 / ISO 4032
    Product UPC Code:
    692559699769
