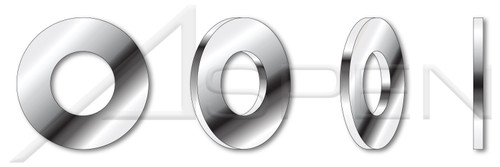

- DIN 125 / ISO 7089 are standard commercial metric flat washers.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M7
- Diameter (Dimension): 7mm
- Inside Diameter (Nominal): 7.4mm
- Inside Diameter (Minimum): 7.4mm
- Inside Diameter (Maximum): 7.62mm
- Outside Diameter (Nominal): 14mm
- Outside Diameter (Minimum): 13.57mm
- Outside Diameter (Maximum): 14mm
- Thickness (Nominal): 1.6mm
- Thickness (Minimum): 1.4mm
- Thickness (Maximum): 1.8mm
PRODUCT ATTRIBUTES- Category: Standard Flat Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Form and Design: Not Chamfered
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 125 Type A / ISO 7089
