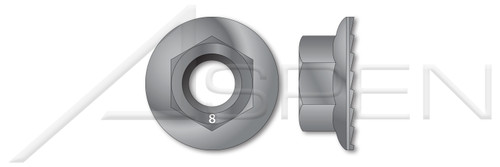

- Wide flange on one side acts as an integrated washer to distribute the load of the nut.
- Also known as a serrated face flange locknut.
- Serrations are angled to keep from rotating in the direction that would loosen the fastener.
- Class 8 nuts are designed to be used with screws and bolts of property class 8.8 or lower.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M8
- Thread Pitch: 1.25
- Diameter (Dimension): 8mm
- Thread Length (Nominal): 8mm
- Across Flats (Basic): 13mm
- Height (Basic): 8mm
- Flange Diameter: 17.9mm
PRODUCT ATTRIBUTES- Category: Hex Flange Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Locking Serrations
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 8 Steel
- Coating: Uncoated
- Standards and Specifications: DIN 6923
Product UPC Code:
698435173248
- Thread Direction:
- Right-Hand Thread
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME064-8125.zip
- Product Class:
- Internally Threaded Fasteners
- Thread Length (Nominal):
- 8mm
- Flange Diameter:
- 17.9mm
- Thread Length:
- Full Thread
- Form and Design:
- Locking Serrations
- Diameter (Dimension):
- 8mm
- Standards and Specifications:
- DIN 6923
- System of Measurement:
- Metric
- Material Grade:
- Class 8 Steel
- Order:
- Nuts
- Shop by Material:
- Steel
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product37/ME064-8125.PDF
- Coating:
- Uncoated
- Material:
- Steel
- Thread Pitch:
- 1.25
- Drive Style:
- External Hex Drive
- Height (Basic):
- 8mm
- POS:
- ME064-8125-002500
- Category:
- Hex Flange Nuts
- Diameter (Nominal):
- M8
- Across Flats (Basic):
- 13mm
- Brand:
- Aspen Fasteners
- Shop by System of Measurement:
- Metric
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME064-8125
