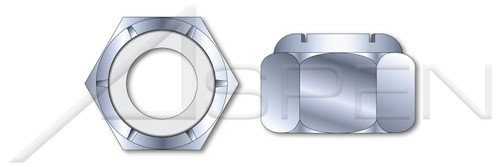

- Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
- The nylon insert collar retains its locking ability up to 250 degrees F (121 degrees C).
- Class 8 nuts are designed to be used with screws and bolts of property class 8.8 or lower.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M8
- Thread Pitch: 1.25
- Diameter (Dimension): 8mm
- Thread Length (Nominal): 9.5mm
- Across Flats (Basic): 13mm
- Height (Basic): 9.5mm
PRODUCT ATTRIBUTES- Category: High Hex Nylon Insert Stop Lock Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 8 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: DIN 982
Product UPC Code:
698435213791
- Brand:
- Aspen Fasteners(r)
- Order:
- Lock Nuts
- Drive Style:
- External Hex Drive
- System of Measurement:
- Metric
- Coating Color:
- Clear
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product37/ME220-8125.PDF
- Diameter (Nominal):
- M8
- Across Flats (Basic):
- 13mm
- Material:
- Steel
- Diameter (Dimension):
- 8mm
- Thread Direction:
- Right-Hand Thread
- Coating:
- Zinc Plated
- Thread Length (Nominal):
- 9.5mm
- Height (Basic):
- 9.5mm
- Standards and Specifications:
- DIN 982
- Category:
- High Hex Nylon Insert Stop Lock Nuts
- Shop by Material:
- Steel
- Product Class:
- Internally Threaded Fasteners
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME220-8125.zip
- Thread Pitch:
- 1.25
- Thread Length:
- Full Thread
- Shop by System of Measurement:
- Metric
- POS:
- ME220-8125-00500
- Material Grade:
- Class 8 Steel
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME220-8125
