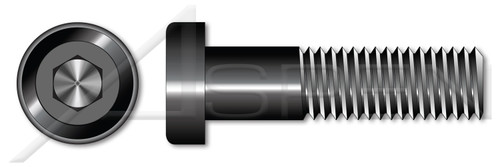

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
- An internal hex socket drive is also known as an Allen drive.
- Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
- Diameter (Nominal): M8
- Thread Pitch: 1.25
- Diameter (Dimension): 8mm
- Diameter (Minimum): 7.78mm
- Diameter (Maximum): 8mm
- Length (Nominal): 14mm
- Thread Length: 14mm
- Recess Size: 6mm
- Head Diameter: 13mm
- Head Diameter (Minimum): 12.73mm
- Head Diameter (Maximum): 13mm
- Head Height, Overall: 5mm
- Head Height, Overall (Minimum): 4.82mm
- Head Height, Overall (Maximum): 5mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Low Cylindrical Head
- Head Style Detail: with Key Guide
- Drive Style: Hex Socket Drive
- Thread Length: Part Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 8.8 Steel
- Coating: Uncoated
- Standards and Specifications: DIN 6912
Product UPC Code:
692559890319
- Coating:
- Uncoated
- Shop by System of Measurement:
- Metric
- Shop by Material:
- Steel
- Shop by Application:
- Socket Products
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Category:
- Socket Head Cap Screws
- System of Measurement:
- Metric
- Brand:
- Aspen Fasteners(r)
- Head Style:
- Low Cylindrical Head
- Head Style Detail:
- with Key Guide
- Drive Style:
- Hex Socket Drive
- Thread Length:
- Part Thread
- Thread Direction:
- Right-Hand Thread
- Material:
- Steel
- Material Grade:
- Class 8.8 Steel
- Standards and Specifications:
- DIN 6912
- Diameter (Nominal):
- M8
- Diameter (Dimension):
- 8mm
- Diameter (Minimum):
- 7.78mm
- Diameter (Maximum):
- 8mm
- Thread Pitch:
- 1.25
- Length (Nominal):
- 14mm
- Thread Length:
- 14mm
- Recess Size:
- 6mm
- Head Diameter:
- 13mm
- Head Diameter (Minimum):
- 12.73mm
- Head Diameter (Maximum):
- 13mm
- Head Height, Overall:
- 5mm
- Head Height, Overall (Minimum):
- 4.82mm
- Head Height, Overall (Maximum):
- 5mm
