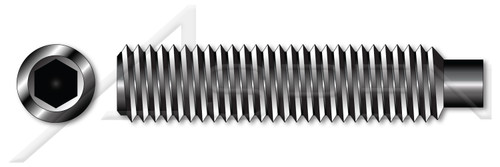

M8-1.25 X 16mm DIN 915 / ISO 4028, Metric, Hex Socket Set Screws, Dog Point, Class 45H Steel, Black

PART NUMBER:
ME269-8125X16-00300
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Holds an object in place via friction between the point of the screw and the fastened material.
  • Headless set screws are also known as blind screws or grub screws.
  • An internal hex socket drive is also known as an Allen drive.
  • Class 45H steel is an alloy steel, quenched and tempered to Rockwell hardness HRC C45-C53.
  • Set screws are designed to be used under compressive stress only.
  • Diameter (Nominal): M8
  • Thread Pitch: 1.25
  • Diameter (Dimension): 8mm
  • Length (Nominal): 16mm
  • Thread Length: 16mm
  • Recess Size: 4mm
  • Point Length: 4mm
  • Point Length (Minimum): 4mm
  • Point Length (Maximum): 4.3mm
  • Point Width: 5.5mm
  • Point Width (Minimum): 5.2mm
  • Point Width (Maximum): 5.5mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Set Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Headless
  • Drive Style: Hex Socket Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Point: Dog Point
  • Material: Steel
  • Material Grade: Class 45H Steel
  • Material Processes: Quenched and Tempered
  • Coating: Uncoated
  • Coating Color: Black
  • Standards and Specifications: DIN 915 / ISO 4028
Product UPC Code:
692559470825
Point:
Dog Point
Shop by System of Measurement:
Metric
Point Length (Maximum):
4.3mm
Point Length (Minimum):
4mm
Point Length:
4mm
Recess Size:
4mm
Thread Length:
16mm
Length (Nominal):
16mm
Thread Pitch:
1.25
Diameter (Dimension):
8mm
Diameter (Nominal):
M8
Standards and Specifications:
DIN 915 / ISO 4028
Coating Color:
Black
Coating:
Uncoated
Material Processes:
Quenched and Tempered
Material Grade:
Class 45H Steel
Material:
Steel
Thread Length:
Full Thread
Drive Style:
Hex Socket Drive
Head Style:
Headless
Brand:
Aspen Fasteners
System of Measurement:
Metric
Category:
Set Screws
Order:
Machine Thread Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Application:
Socket Products
Shop by Material:
Steel
Point Width:
5.5mm
Point Width (Minimum):
5.2mm
Point Width (Maximum):
5.5mm
Thread Direction:
Right-Hand Thread
  • Description
    • Holds an object in place via friction between the point of the screw and the fastened material.
    • Headless set screws are also known as blind screws or grub screws.
    • An internal hex socket drive is also known as an Allen drive.
    • Class 45H steel is an alloy steel, quenched and tempered to Rockwell hardness HRC C45-C53.
    • Set screws are designed to be used under compressive stress only.
    • Diameter (Nominal): M8
    • Thread Pitch: 1.25
    • Diameter (Dimension): 8mm
    • Length (Nominal): 16mm
    • Thread Length: 16mm
    • Recess Size: 4mm
    • Point Length: 4mm
    • Point Length (Minimum): 4mm
    • Point Length (Maximum): 4.3mm
    • Point Width: 5.5mm
    • Point Width (Minimum): 5.2mm
    • Point Width (Maximum): 5.5mm
    • Product Class: Externally Threaded Fasteners
    • Order: Machine Thread Fasteners
    • Category: Set Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Headless
    • Drive Style: Hex Socket Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Point: Dog Point
    • Material: Steel
    • Material Grade: Class 45H Steel
    • Material Processes: Quenched and Tempered
    • Coating: Uncoated
    • Coating Color: Black
    • Standards and Specifications: DIN 915 / ISO 4028
    Product UPC Code:
    692559470825

Contact us for availability information on part number ME269-8125X16-00300. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
