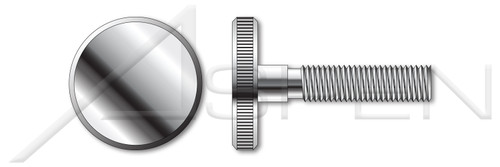

- A thumb screw is designed to be turned using a thumb and finger.
- Knurls on the side of the head improves the grip.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M8
- Thread Pitch: 1.25
- Diameter (Dimension): 8mm
- Diameter (Minimum): 7.78mm
- Diameter (Maximum): 8mm
- Length (Nominal): 18mm
- Thread Length: 18mm
- Head Diameter: 30mm
- Head Diameter (Minimum): 29.58mm
- Head Diameter (Maximum): 30.42mm
- Head Height, Overall: 6mm
- Head Height, Overall (Minimum): 5.7mm
- Head Height, Overall (Maximum): 6mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Thumb Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Knurled Flat Head
- Head Style Detail: Low Type
- Drive Style: Thumb Drive
- Pitch: Coarse Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: AISI 303 Stainless Steel (18-8)
- Coating: Uncoated
- Standards and Specifications: DIN 653
