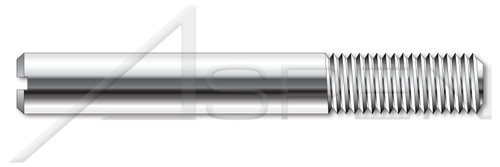

M8-1.25 X 20mm DIN 427 / ISO 2342, Metric, Set Screws, Slotted Drive, Part Thread, AISI 303 Stainless Steel (18-8)

PART NUMBER:
ME515-8125X20-000100
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Holds an object in place via friction between the point of the screw and the fastened material.
  • Headless set screws are also known as blind screws or grub screws.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Set screws are designed to be used under compressive stress only.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M8
  • Thread Pitch: 1.25
  • Diameter (Dimension): 8mm
  • Diameter (Minimum): 7.78mm
  • Diameter (Maximum): 8mm
  • Length (Nominal): 20mm
  • Thread Length (Nominal): 9.6mm
  • Thread Length (Minimum): 9.6mm
  • Thread Length (Maximum): 12.1mm
  • Slot Depth (Minimum): 3.1mm
  • Slot Depth (Maximum): 3.6mm
  • Slot Width (Nominal): 1.2mm
  • Slot Width (Minimum): 1.26mm
  • Slot Width (Maximum): 1.51mm
PRODUCT ATTRIBUTES
  • Category: Set Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Form and Design: Chamfered End
  • Head Style: Headless
  • Drive Style: Slotted Drive
  • Thread Length: Part Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: AISI 303 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 427 / ISO 2342
Product UPC Code:
692559479651
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product51/ME515-8125X20.PDF
Slot Depth (Maximum):
3.6mm
POS:
ME515-8125X20-000100
Shop by Material:
Stainless Steel
Diameter (Minimum):
7.78mm
Material Grade:
AISI 303 Stainless Steel
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME515-8125X20
Thread Pitch:
1.25
Diameter (Maximum):
8mm
Form and Design:
Chamfered End
Standards and Specifications:
DIN 427 / ISO 2342
Slot Width (Maximum):
1.51mm
Thread Direction:
Right-Hand Thread
Order:
Machine Thread Fasteners
System of Measurement:
Metric
Category:
Set Screws
Thread Length (Nominal):
9.6mm
Slot Depth (Minimum):
3.1mm
Head Style:
Headless
Diameter (Nominal):
M8
Slot Width (Nominal):
1.2mm
Product Class:
Externally Threaded Fasteners
Diameter (Dimension):
8mm
Brand:
Aspen Fasteners
Thread Length:
Part Thread
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME515-8125X20.zip
Coating:
Uncoated
Drive Style:
Slotted Drive
Slot Width (Minimum):
1.26mm
Thread Length (Minimum):
9.6mm
Origin:
Origin Undefined
Shop by System of Measurement:
Metric
Length (Nominal):
20mm
Material:
Stainless Steel
Thread Length (Maximum):
12.1mm
  • Description
    • Holds an object in place via friction between the point of the screw and the fastened material.
    • Headless set screws are also known as blind screws or grub screws.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Set screws are designed to be used under compressive stress only.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M8
    • Thread Pitch: 1.25
    • Diameter (Dimension): 8mm
    • Diameter (Minimum): 7.78mm
    • Diameter (Maximum): 8mm
    • Length (Nominal): 20mm
    • Thread Length (Nominal): 9.6mm
    • Thread Length (Minimum): 9.6mm
    • Thread Length (Maximum): 12.1mm
    • Slot Depth (Minimum): 3.1mm
    • Slot Depth (Maximum): 3.6mm
    • Slot Width (Nominal): 1.2mm
    • Slot Width (Minimum): 1.26mm
    • Slot Width (Maximum): 1.51mm
    PRODUCT ATTRIBUTES
    • Category: Set Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Form and Design: Chamfered End
    • Head Style: Headless
    • Drive Style: Slotted Drive
    • Thread Length: Part Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: AISI 303 Stainless Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 427 / ISO 2342
    Product UPC Code:
    692559479651
