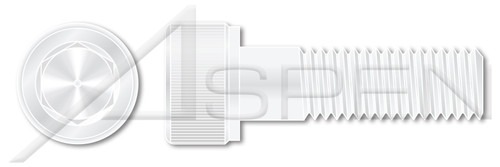

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- An internal hex socket drive is also known as an Allen drive.
- Nylon 6/6 is a general purpose Polyamide with excellent tensile strength.
- Diameter (Nominal): M8
- Thread Pitch: 1.25
- Diameter (Dimension): 8mm
- Diameter (Minimum): 7.78mm
- Diameter (Maximum): 8mm
- Length (Nominal): 20mm
- Thread Length: 20mm
- Recess Size: 6mm
- Head Diameter: 13mm
- Head Diameter (Minimum): 12.73mm
- Head Diameter (Maximum): 13mm
- Head Height, Overall: 8mm
- Head Height, Overall (Minimum): 7.64mm
- Head Height, Overall (Maximum): 8mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Thread Direction: Right-Hand Thread
- Material: Nylon
- Material Grade: Type 6/6
- Coating: Uncoated
- Standards and Specifications: DIN 912 / ISO 4762
Product UPC Code:
698435219601
- Head Diameter:
- 13mm
- Head Style:
- Cylindrical Head
- Drive Style:
- Hex Socket Drive
- Thread Direction:
- Right-Hand Thread
- Material:
- Nylon
- Material Grade:
- Type 6/6
- Coating:
- Uncoated
- Standards and Specifications:
- DIN 912 / ISO 4762
- Diameter (Nominal):
- M8
- Diameter (Dimension):
- 8mm
- Diameter (Minimum):
- 7.78mm
- Diameter (Maximum):
- 8mm
- Brand:
- Aspen Fasteners(r)
- System of Measurement:
- Metric
- Category:
- Socket Head Cap Screws
- Order:
- Machine Thread Fasteners
- Product Class:
- Externally Threaded Fasteners
- Shop by Application:
- Socket Products
- Shop by Material:
- Nylon
- Shop by System of Measurement:
- Metric
- Thread Pitch:
- 1.25
- Length (Nominal):
- 20mm
- Thread Length:
- 20mm
- Recess Size:
- 6mm
- Head Diameter (Minimum):
- 12.73mm
- Head Diameter (Maximum):
- 13mm
- Head Height, Overall:
- 8mm
- Head Height, Overall (Minimum):
- 7.64mm
- Head Height, Overall (Maximum):
- 8mm
