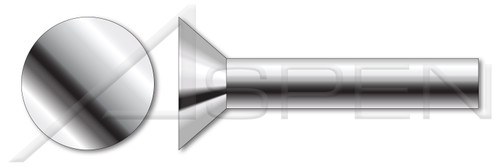

M8 X 25mm DIN 661 / ISO 1051, Metric, Solid Rivets, Flat Countersunk Head, A2 Stainless Steel

$144.72
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PART NUMBER:
ME632-8X25-000200
Buy in Bulk and Save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Solid rivets are simply a shaft and head designed to be deformed with a hammer or rivet gun.
  • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M8
  • Diameter (Dimension): 8mm
  • Diameter (Minimum): 7.76mm
  • Diameter (Maximum): 8.15mm
  • Length (Nominal): 25mm
  • Unthreaded Shank Length: 21mm
  • Head Diameter: 14mm
  • Head Diameter (Minimum): 13.3mm
  • Head Diameter (Maximum): 14mm
  • Head Height, Overall: 4mm
PRODUCT ATTRIBUTES
  • Category: Solid Rivets
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Flat Countersunk Head
  • Head Style Detail: 75 Degree Countersink
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 661 / ISO 1051
Product UPC Code:
698435910263
Buy in Bulk and Save
Order:
Rivets
Material Grade:
A2 Stainless Steel
Category:
Solid Rivets
Head Diameter (Maximum):
14mm
Head Style Detail:
75 Degree Countersink
Coating:
Uncoated
Head Style:
Flat Countersunk Head
Length (Nominal):
25mm
Material:
Stainless Steel
Diameter (Nominal):
M8
Diameter (Maximum):
8.15mm
Brand:
Aspen Fasteners(r)
Head Height, Overall:
4mm
Shop by System of Measurement:
Metric
Diameter (Dimension):
8mm
Head Diameter:
14mm
Head Diameter (Minimum):
13.3mm
Shop by Material:
Stainless Steel
Diameter (Minimum):
7.76mm
Product Class:
Rivets
System of Measurement:
Metric
Standards and Specifications:
DIN 661 / ISO 1051

Contact us for availability information on part number ME632-8X25-000200. Please chat with us, call us, or use the form below. Our customer support team will find the best delivery options for you.
