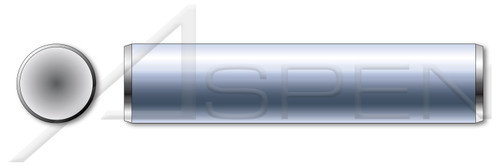

M8 X 32mm DIN 7 Type A, Metric, Solid Dowel Pins, A1 Stainless Steel

PART NUMBER:
ME143-8X32-00025
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Using receiving holes, dowel pins use friction to hold parts of an assembly together.
  • Can be used as pivot pins, hinges, or locating pins.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M8
  • Diameter (Dimension): 8mm
  • Diameter (Minimum): 8.006mm
  • Diameter (Maximum): 8.015mm
  • Length (Nominal): 32mm
  • Ball End Height: 1.2mm
  • Product Class: Pins and Wireforms
  • Order: Dowel Pins
  • Category: Solid Dowel Pins
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Form and Design: Rounded Ends
  • Tolerance: Tolerance m6
  • Material: Stainless Steel
  • Material Grade: A1 Stainless Steel
  • Material Processes: Unhardened
  • Coating: Uncoated
  • Standards and Specifications: DIN 7 Type A
Product UPC Code:
698435194984
Material Grade:
A1 Stainless Steel
Material:
Stainless Steel
Tolerance:
Tolerance m6
Form and Design:
Rounded Ends
Brand:
Aspen Fasteners
System of Measurement:
Metric
Category:
Solid Dowel Pins
Order:
Dowel Pins
Product Class:
Pins and Wireforms
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
Ball End Height:
1.2mm
Standards and Specifications:
DIN 7 Type A
Diameter (Nominal):
M8
Diameter (Dimension):
8mm
Diameter (Minimum):
8.006mm
Diameter (Maximum):
8.015mm
Length (Nominal):
32mm
Coating:
Uncoated
Material Processes:
Unhardened
  • Description
    • Using receiving holes, dowel pins use friction to hold parts of an assembly together.
    • Can be used as pivot pins, hinges, or locating pins.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Diameter (Nominal): M8
    • Diameter (Dimension): 8mm
    • Diameter (Minimum): 8.006mm
    • Diameter (Maximum): 8.015mm
    • Length (Nominal): 32mm
    • Ball End Height: 1.2mm
    • Product Class: Pins and Wireforms
    • Order: Dowel Pins
    • Category: Solid Dowel Pins
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Form and Design: Rounded Ends
    • Tolerance: Tolerance m6
    • Material: Stainless Steel
    • Material Grade: A1 Stainless Steel
    • Material Processes: Unhardened
    • Coating: Uncoated
    • Standards and Specifications: DIN 7 Type A
    Product UPC Code:
    698435194984
