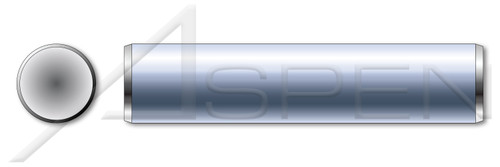

M8 X 45mm DIN 7 Type A, Metric, Solid Dowel Pins, AISI 303 Stainless Steel (18-8)

PART NUMBER:
ME128-8X45-000100
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Using receiving holes, dowel pins use friction to hold parts of an assembly together.
  • Can be used as pivot pins, hinges, or locating pins.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M8
  • Diameter (Dimension): 8mm
  • Diameter (Minimum): 8.006mm
  • Diameter (Maximum): 8.015mm
  • Length (Nominal): 45mm
  • Ball End Height: 1.2mm
  • Product Class: Pins and Wireforms
  • Order: Dowel Pins
  • Category: Solid Dowel Pins
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Form and Design: Rounded Ends
  • Tolerance: Tolerance m6
  • Material: Stainless Steel
  • Material Grade: AISI 303 Stainless Steel (18-8)
  • Material Processes: Unhardened
  • Coating: Uncoated
  • Standards and Specifications: DIN 7 Type A
Product UPC Code:
692559595122
Diameter (Minimum):
8.006mm
Diameter (Dimension):
8mm
Diameter (Nominal):
M8
Shop by System of Measurement:
Metric
Shop by Material:
Stainless Steel
Product Class:
Pins and Wireforms
Order:
Dowel Pins
Standards and Specifications:
DIN 7 Type A
Coating:
Uncoated
Material Processes:
Unhardened
Material Grade:
AISI 303 Stainless Steel (18-8)
Material:
Stainless Steel
Tolerance:
Tolerance m6
Ball End Height:
1.2mm
Form and Design:
Rounded Ends
Brand:
Aspen Fasteners
System of Measurement:
Metric
Category:
Solid Dowel Pins
Length (Nominal):
45mm
Diameter (Maximum):
8.015mm
  • Description
    • Using receiving holes, dowel pins use friction to hold parts of an assembly together.
    • Can be used as pivot pins, hinges, or locating pins.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Diameter (Nominal): M8
    • Diameter (Dimension): 8mm
    • Diameter (Minimum): 8.006mm
    • Diameter (Maximum): 8.015mm
    • Length (Nominal): 45mm
    • Ball End Height: 1.2mm
    • Product Class: Pins and Wireforms
    • Order: Dowel Pins
    • Category: Solid Dowel Pins
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Form and Design: Rounded Ends
    • Tolerance: Tolerance m6
    • Material: Stainless Steel
    • Material Grade: AISI 303 Stainless Steel (18-8)
    • Material Processes: Unhardened
    • Coating: Uncoated
    • Standards and Specifications: DIN 7 Type A
    Product UPC Code:
    692559595122
