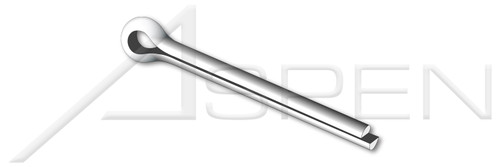

M8 X 45mm DIN 94 / ISO 1234, Metric, Standard Cotter Pins, A2 Stainless Steel

PART NUMBER:
ME148-8X45-000100
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Cotter pins are also known as split pins but these should not be confused with rolled split pins.
  • Cotter pins have one prong slightly longer than the other so that they're easy to open.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M8
  • Diameter (Dimension): 8mm
  • Diameter (Minimum): 7.3mm
  • Diameter (Maximum): 7.5mm
  • Length (Nominal): 45mm
  • Effective Length: 45mm
  • Head Diameter: 15mm
  • Head Diameter (Minimum): 13.1mm
  • Head Diameter (Maximum): 15mm
  • Head Height, Overall: 16mm
  • Prong End Offset: 4mm
PRODUCT ATTRIBUTES
  • Category: Standard Cotter Pins
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 94 / ISO 1234
Product UPC Code:
692559602387
Head Diameter (Minimum):
13.1mm
Prong End Offset:
4mm
Head Height, Overall:
16mm
Head Diameter (Maximum):
15mm
Head Diameter:
15mm
Effective Length:
45mm
Length (Nominal):
45mm
Diameter (Maximum):
7.5mm
Diameter (Minimum):
7.3mm
Diameter (Dimension):
8mm
Diameter (Nominal):
M8
Standards and Specifications:
DIN 94 / ISO 1234
Coating:
Uncoated
Material Grade:
A2 Stainless Steel
Material:
Stainless Steel
Brand:
Aspen Fasteners
System of Measurement:
Metric
Category:
Standard Cotter Pins
Order:
Cotter Pins
Product Class:
Pins and Wireforms
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
  • Description
    • Cotter pins are also known as split pins but these should not be confused with rolled split pins.
    • Cotter pins have one prong slightly longer than the other so that they're easy to open.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M8
    • Diameter (Dimension): 8mm
    • Diameter (Minimum): 7.3mm
    • Diameter (Maximum): 7.5mm
    • Length (Nominal): 45mm
    • Effective Length: 45mm
    • Head Diameter: 15mm
    • Head Diameter (Minimum): 13.1mm
    • Head Diameter (Maximum): 15mm
    • Head Height, Overall: 16mm
    • Prong End Offset: 4mm
    PRODUCT ATTRIBUTES
    • Category: Standard Cotter Pins
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 94 / ISO 1234
    Product UPC Code:
    692559602387

Contact us for availability information on part number ME148-8X45-000100. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
