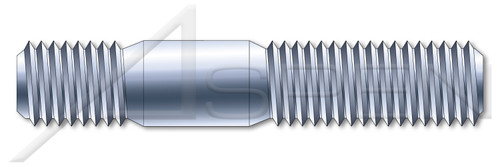

M10-1.5 X 110mm DIN 939, Metric, Studs, Double-Ended, Screw-in End 1.25 X Diameter, Class 8.8 Steel, Zinc Plated

PART NUMBER:
ME726-1015X110-000050
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
  • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
  • Double-ended studs are used to join parts when a bolt or screw head is not an option.
  • Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M10
  • Thread Pitch: 1.5
  • Diameter (Dimension): 10mm
  • Length (Nominal): 110mm
  • Length Overall: 122mm
  • Screw-End Thread Length: 12mm
  • Thread Length (Nominal): 26mm
  • Body Length (Nominal): 84mm
PRODUCT ATTRIBUTES
  • Category: Studs, Double-Ended
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Form and Design: Screw-in End 1.25 X Diameter
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 8.8 Steel
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Standards and Specifications: DIN 939
Thread Direction:
Right-Hand Thread
Material Grade:
Class 8.8 Steel
Screw-End Thread Length:
12mm
Length (Nominal):
110mm
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME726-1015X110.zip
Diameter (Dimension):
10mm
Product Class:
Externally Threaded Fasteners
Coating:
Zinc Plated
Coating Color:
Clear
Body Length (Nominal):
84mm
Diameter (Nominal):
M10
Brand:
Aspen Fasteners(r)
Standards and Specifications:
DIN 939
POS:
ME726-1015X110-000050
System of Measurement:
Metric
Length Overall:
122mm
Thread Length (Nominal):
26mm
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product96/ME726-1015X110.PDF
Order:
Machine Thread Fasteners
Form and Design:
Screw-in End 1.25 X Diameter
Thread Pitch:
1.5
Material:
Steel
Category:
Studs, Double-Ended
Shop by Material:
Steel
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME726-1015X110
Shop by System of Measurement:
Metric
  • Description
    • MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
    • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
    • Double-ended studs are used to join parts when a bolt or screw head is not an option.
    • Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M10
    • Thread Pitch: 1.5
    • Diameter (Dimension): 10mm
    • Length (Nominal): 110mm
    • Length Overall: 122mm
    • Screw-End Thread Length: 12mm
    • Thread Length (Nominal): 26mm
    • Body Length (Nominal): 84mm
    PRODUCT ATTRIBUTES
    • Category: Studs, Double-Ended
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Form and Design: Screw-in End 1.25 X Diameter
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 8.8 Steel
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Standards and Specifications: DIN 939
  • 3D Product View
