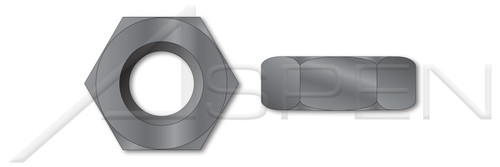

- Jam nuts are also known as low form nuts or thin nuts.
- Jam nuts are about half the height of regular finished nuts.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M12
- Thread Pitch: 1.75
- Diameter (Dimension): 12mm
- Thread Length (Nominal): 7mm
- Across Flats (Basic): 19mm
- Across Flats (Minimum): 18.67mm
- Across Flats (Maximum): 19mm
- Height (Basic): 7mm
- Height (Minimum): 6.64mm
- Height (Maximum): 7mm
PRODUCT ATTRIBUTES- Category: Hex Jam Thin Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Double Chamfered
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 4 Steel
- Coating: Uncoated
- Standards and Specifications: DIN 936
Product UPC Code:
698435243989
- Thread Length:
- Full Thread
- Height (Minimum):
- 6.64mm
- POS:
- ME336-12175-00150
- Shop by System of Measurement:
- Metric
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product37/ME336-12175.PDF
- Drive Style:
- External Hex Drive
- Diameter (Dimension):
- 12mm
- Category:
- Hex Jam Thin Nuts
- Coating:
- Uncoated
- Height (Basic):
- 7mm
- Diameter (Nominal):
- M12
- Brand:
- Aspen Fasteners(r)
- Product Class:
- Internally Threaded Fasteners
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME336-12175.zip
- Thread Length (Nominal):
- 7mm
- Across Flats (Basic):
- 19mm
- Height (Maximum):
- 7mm
- Across Flats (Maximum):
- 19mm
- System of Measurement:
- Metric
- Form and Design:
- Double Chamfered
- Order:
- Nuts
- Shop by Material:
- Steel
- Material Grade:
- Class 4 Steel
- Standards and Specifications:
- DIN 936
- Thread Direction:
- Right-Hand Thread
- Material:
- Steel
- Across Flats (Minimum):
- 18.67mm
- Thread Pitch:
- 1.75
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME336-12175
