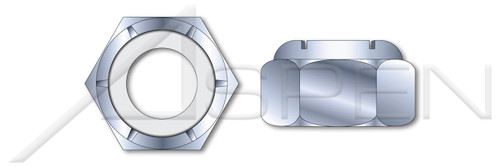

- Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
- The nylon insert collar retains its locking ability up to 250 degrees F (121 degrees C).
- Class 10 nuts are designed to be used with screws and bolts of property class 10.9 or lower.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M16
- Thread Pitch: 1.5
- Diameter (Dimension): 16mm
- Thread Length (Nominal): 10.5mm
- Across Flats (Basic): 24mm
- Across Flats (Minimum): 23.67mm
- Across Flats (Maximum): 24mm
- Height (Basic): 16mm
- Height (Minimum): 15.3mm
- Height (Maximum): 16mm
PRODUCT ATTRIBUTES- Category: Hex Nylon Insert Stop Lock Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 10 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: DIN 985
Product UPC Code:
698435214064
- Shop by Material:
- Steel
- POS:
- ME222-1615-00050
- Order:
- Lock Nuts
- Coating Color:
- Clear
- Height (Minimum):
- 15.3mm
- Product Class:
- Internally Threaded Fasteners
- Diameter (Nominal):
- M16
- Drive Style:
- External Hex Drive
- Thread Length:
- Full Thread
- Across Flats (Minimum):
- 23.67mm
- Shop by System of Measurement:
- Metric
- Height (Basic):
- 16mm
- System of Measurement:
- Metric
- Material Grade:
- Class 10 Steel
- Across Flats (Maximum):
- 24mm
- Standards and Specifications:
- DIN 985
- Material:
- Steel
- Diameter (Dimension):
- 16mm
- Height (Maximum):
- 16mm
- Thread Pitch:
- 1.5
- Thread Length (Nominal):
- 10.5mm
- Coating:
- Zinc Plated
- Brand:
- Aspen Fasteners(r)
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME222-1615.zip
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product37/ME222-1615.PDF
- Category:
- Hex Nylon Insert Stop Lock Nuts
- Across Flats (Basic):
- 24mm
- Thread Direction:
- Right-Hand Thread
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME222-1615
