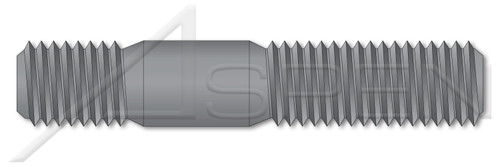

M30-3.5 X 150mm DIN 939, Metric, Studs, Double-Ended, Screw-in End 1.25 X Diameter, Class 5.8 Steel

M30-3.5 X 150mm DIN 939, Metric, Studs, Double-Ended, Screw-in End 1.25 X Diameter, Class 5.8 Steel

$221.04
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PART NUMBER:
ME724-3035X150-000006
Buy in Bulk and Save

Buy in Bulk and Save!

Nothing for you to do! These discounts will automatically be applied at check out!

  • Buy 3 - 9 packages of the same item and get 10% off
  • Buy 10 or above packages of the same item and get 20% off
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
  • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
  • Double-ended studs are used to join parts when a bolt or screw head is not an option.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M30
  • Thread Pitch: 3.5
  • Diameter (Dimension): 30mm
  • Length (Nominal): 150mm
  • Length Overall: 188mm
  • Screw-End Thread Length: 38mm
  • Thread Length (Nominal): 72mm
  • Body Length (Nominal): 78mm
PRODUCT ATTRIBUTES
  • Category: Studs, Double-Ended
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Form and Design: Screw-in End 1.25 X Diameter
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 5.8 Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 939
Buy in Bulk and Save

Buy in Bulk and Save!

Nothing for you to do! These discounts will automatically be applied at check out!

  • Buy 3 - 9 packages of the same item and get 10% off
  • Buy 10 or above packages of the same item and get 20% off
Thread Length (Nominal):
72mm
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME724-3035X150
System of Measurement:
Metric
Brand:
Aspen Fasteners(r)
Form and Design:
Screw-in End 1.25 X Diameter
Thread Direction:
Right-Hand Thread
Material:
Steel
Material Grade:
Class 5.8 Steel
Coating:
Uncoated
Standards and Specifications:
DIN 939
Diameter (Nominal):
M30
Diameter (Dimension):
30mm
Thread Pitch:
3.5
Length (Nominal):
150mm
Screw-End Thread Length:
38mm
Length Overall:
188mm
Body Length (Nominal):
78mm
Shop by System of Measurement:
Metric
Shop by Material:
Steel
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Studs, Double-Ended
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME724-3035X150.zip
Print
  • Description
    • MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
    • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
    • Double-ended studs are used to join parts when a bolt or screw head is not an option.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M30
    • Thread Pitch: 3.5
    • Diameter (Dimension): 30mm
    • Length (Nominal): 150mm
    • Length Overall: 188mm
    • Screw-End Thread Length: 38mm
    • Thread Length (Nominal): 72mm
    • Body Length (Nominal): 78mm
    PRODUCT ATTRIBUTES
    • Category: Studs, Double-Ended
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Form and Design: Screw-in End 1.25 X Diameter
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 5.8 Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 939
