- Flange on the nut acts like a washer to increase the bearing surface and distribute the load.
- Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
- Class 8 nuts are designed to be used with screws and bolts of property class 8.8 or lower.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M8
- Thread Pitch: 1.25
- Diameter (Dimension): 8mm
- Thread Length (Nominal): 7.6mm
- Across Flats (Basic): 13mm
- Across Flats (Minimum): 12.73mm
- Across Flats (Maximum): 13mm
- Height (Basic): 11.1mm
- Height (Minimum): 10.67mm
- Height (Maximum): 11.1mm
- Flange Diameter: 17.9mm
- Flange Thickness: 3.1mm

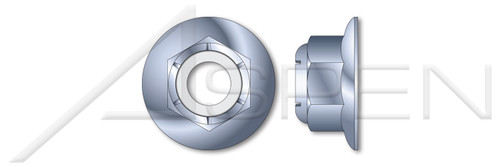

PRODUCT ATTRIBUTES- Category: Hex Nylon Insert Flange Stop Lock Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 8 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: DIN 6926
Product UPC Code:
698435257986
- POS:
- ME429-8125-00300
- System of Measurement:
- Metric
- Material Grade:
- Class 8 Steel
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME429-8125.zip
- Across Flats (Maximum):
- 13mm
- Shop by System of Measurement:
- Metric
- Diameter (Dimension):
- 8mm
- Category:
- Hex Nylon Insert Flange Stop Lock Nuts
- Brand:
- Aspen Fasteners
- Product Class:
- Internally Threaded Fasteners
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product38/ME429-8125.PDF
- Across Flats (Basic):
- 13mm
- Coating Color:
- Clear
- Diameter (Nominal):
- M8
- Thread Length:
- Full Thread
- Height (Minimum):
- 10.67mm
- Thread Pitch:
- 1.25
- Across Flats (Minimum):
- 12.73mm
- Drive Style:
- External Hex Drive
- Flange Thickness:
- 3.1mm
- Coating:
- Zinc Plated
- Order:
- Lock Nuts
- Shop by Material:
- Steel
- Standards and Specifications:
- DIN 6926
- Thread Direction:
- Right-Hand Thread
- Flange Diameter:
- 17.9mm
- Material:
- Steel
- Thread Length (Nominal):
- 7.6mm
- Height (Basic):
- 11.1mm
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME429-8125
- Height (Maximum):
- 11.1mm
