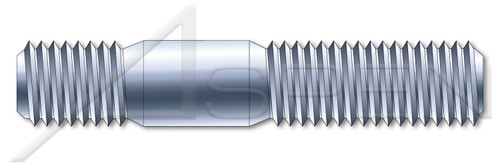

M8-1.25 X 25mm DIN 939, Metric, Studs, Double-Ended, Screw-in End 1.25 X Diameter, Class 8.8 Steel, Zinc Plated

PART NUMBER:
ME726-8125X25-000400
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
  • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
  • Double-ended studs are used to join parts when a bolt or screw head is not an option.
  • Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M8
  • Thread Pitch: 1.25
  • Diameter (Dimension): 8mm
  • Length (Nominal): 25mm
  • Length Overall: 35mm
  • Screw-End Thread Length: 10mm
  • Thread Length (Nominal): 22mm
  • Body Length (Nominal): 3mm
PRODUCT ATTRIBUTES
  • Category: Studs, Double-Ended
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Form and Design: Screw-in End 1.25 X Diameter
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 8.8 Steel
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Standards and Specifications: DIN 939
Screw-End Thread Length:
10mm
System of Measurement:
Metric
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product96/ME726-8125X25.PDF
Product Class:
Externally Threaded Fasteners
Brand:
Aspen Fasteners(r)
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME726-8125X25.zip
Length (Nominal):
25mm
Category:
Studs, Double-Ended
Thread Pitch:
1.25
Thread Length (Nominal):
22mm
Thread Direction:
Right-Hand Thread
Diameter (Dimension):
8mm
Shop by System of Measurement:
Metric
Coating:
Zinc Plated
Diameter (Nominal):
M8
Shop by Material:
Steel
Order:
Machine Thread Fasteners
Material:
Steel
Material Grade:
Class 8.8 Steel
Form and Design:
Screw-in End 1.25 X Diameter
Body Length (Nominal):
3mm
POS:
ME726-8125X25-000400
Length Overall:
35mm
Standards and Specifications:
DIN 939
Coating Color:
Clear
  • Description
    • MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
    • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
    • Double-ended studs are used to join parts when a bolt or screw head is not an option.
    • Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M8
    • Thread Pitch: 1.25
    • Diameter (Dimension): 8mm
    • Length (Nominal): 25mm
    • Length Overall: 35mm
    • Screw-End Thread Length: 10mm
    • Thread Length (Nominal): 22mm
    • Body Length (Nominal): 3mm
    PRODUCT ATTRIBUTES
    • Category: Studs, Double-Ended
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Form and Design: Screw-in End 1.25 X Diameter
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 8.8 Steel
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Standards and Specifications: DIN 939
