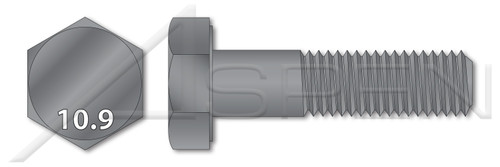

M8 X 40mm DIN 931 / ISO 4014, Metric, Hex Head Cap Screws Bolts, Part Thread, Class 10.9 Steel, Plain

PART NUMBER:
ME004-8X40-001000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
  • Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
  • The washer face under the head provides a precision bearing surface.
  • The chamfered point improves engagement with a nut or pre-tapped hole.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M8
  • Thread Pitch: 1.25
  • Diameter (Dimension): 8mm
  • Length (Nominal): 40mm
  • Thread Length (Nominal): 22mm
  • Across Flats (Basic): 13mm
  • Head Height, Overall: 5.3mm
PRODUCT ATTRIBUTES
  • Category: Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Hex Head
  • Head Style Detail: Washer Face
  • Drive Style: External Hex Drive
  • Pitch: Coarse Thread
  • Thread Length: Part Thread
  • Thread Direction: Right-Hand Thread
  • Point: Chamfered Point
  • Material: Steel
  • Material Grade: Class 10.9 Steel
  • Material Processes: Quenched and Tempered
  • Coating: Uncoated
  • Standards and Specifications: DIN 931 / ISO 4014
Product UPC Code:
692559529967
Across Flats (Basic):
13mm
Brand:
Aspen Fasteners(r)
Category:
Cap Screws
Coating:
Uncoated
Diameter (Dimension):
8mm
Diameter (Nominal):
M8
Drive Style:
External Hex Drive
Head Height, Overall:
5.3mm
Head Style:
Hex Head
Head Style Detail:
Washer Face
Length (Nominal):
40mm
Material:
Steel
Material Grade:
Class 10.9 Steel
Material Processes:
Quenched and Tempered
Order:
Machine Thread Fasteners
POS:
ME004-8X40-001000
Pitch:
Coarse Thread
Point:
Chamfered Point
Product Class:
Externally Threaded Fasteners
Standards and Specifications:
DIN 931 / ISO 4014
System of Measurement:
Metric
Thread Direction:
Right-Hand Thread
Thread Length:
Part Thread
Thread Length (Nominal):
22mm
Thread Pitch:
1.25
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product86/ME004-8X40.PDF
Shop by Material:
Steel
Shop by System of Measurement:
Metric
  • Description
    • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
    • Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
    • The washer face under the head provides a precision bearing surface.
    • The chamfered point improves engagement with a nut or pre-tapped hole.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M8
    • Thread Pitch: 1.25
    • Diameter (Dimension): 8mm
    • Length (Nominal): 40mm
    • Thread Length (Nominal): 22mm
    • Across Flats (Basic): 13mm
    • Head Height, Overall: 5.3mm
    PRODUCT ATTRIBUTES
    • Category: Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Hex Head
    • Head Style Detail: Washer Face
    • Drive Style: External Hex Drive
    • Pitch: Coarse Thread
    • Thread Length: Part Thread
    • Thread Direction: Right-Hand Thread
    • Point: Chamfered Point
    • Material: Steel
    • Material Grade: Class 10.9 Steel
    • Material Processes: Quenched and Tempered
    • Coating: Uncoated
    • Standards and Specifications: DIN 931 / ISO 4014
    Product UPC Code:
    692559529967

Contact us for availability information on part number ME004-8X40-001000. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
